تفاصيل المنتج:
|
| الكلمة الرئيسية: | مصنع الأكسجين في بي بي إس إيه | جهاز السلامة: | صمام تخفيف الضغط |
|---|---|---|---|
| شكل: | أسطواني | استهلاك الطاقة: | 0.5-1.5 كيلو واط/نيوتن متر3 |
| طريقة التنسيب: | رَأسِيّ | فاصل الصيانة: | 1 سنة |
| درجة حرارة التشغيل: | 5-45 درجة مئوية | قطر الوعاء الخارجي: | 2000 ملم |
| طلب: | إنتاج الأكسجين | طول: | 6058mm |
| إبراز: | 1 Year Maintenance Interval VPSA Oxygen Generator,Vertical Placement Oxygen Production Equipment,Cylindrical Shape VPSA Oxygen Plant,Vertical Placement Oxygen Production Equipment,Cylindrical Shape VPSA Oxygen Plant |
||

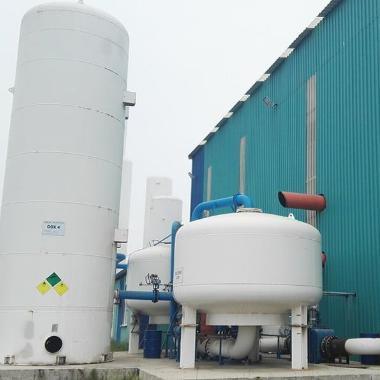

The VPSA oxygen system is a complete solution for medical and industrial applications requiring oxygen purity over 95%. The system consists of several key components including blower, vacuum pump, switching valve, adsorber, and oxygen balancing tank.
After removing dust particles through the inlet filter, raw air is pressurized by the Roots blower to 0.3-0.5barg and enters one of the adsorbers. The adsorber contains specialized adsorbent materials that sequentially remove water, carbon dioxide, and nitrogen, allowing oxygen (including argon) to be discharged as product gas.
| Model | Purity | Size (mm) | Weight (kg) | Inlet | Outlet |
|---|---|---|---|---|---|
| VPSA-3 | 90-95% | 1200×900×1900 | 520 | DN15 | G1/2" |
| VPSA-5 | 90-95% | 1350×1050×2100 | 750 | DN20 | G1/2" |
| VPSA-10 | 90-95% | 1550×1300×2100 | 1100 | DN25 | G1/2" |
| VPSA-15 | 90-95% | 1700×1450×2350 | 1500 | DN32 | G1/2" |
| VPSA-20 | 90-95% | 1800×1550×2350 | 1750 | DN32 | G1/2" |
| VPSA-25 | 90-95% | 1900×1650×2400 | 2000 | DN40 | G1" |
| VPSA-30 | 90-95% | 2000×1750×2400 | 2250 | DN40 | G1/2" |
| VPSA-35 | 90-95% | 1970×1250×2800 | 1800 | DN40 | DN25 |
| VPSA-40 | 90-95% | 2000×1300×2460 | 2380 | DN40 | DN25 |
| VPSA-50 | 90-95% | 2000×1300×2800 | 2790 | DN50 | DN25 |
| VPSA-60 | 90-95% | 2000×1300×2800 | 2930 | DN50 | DN25 |
| VPSA-70 | 90-95% | 2200×1500×2900 | 3190 | DN50 | DN40 |
| VPSA-80 | 90-95% | 2200×1500×2900 | 3585 | DN50 | DN40 |
| VPSA-90 | 90-95% | 2250×1550×2980 | 3940 | DN50 | DN40 |
| VPSA-100 | 90-95% | 2370×1500×3050 | 4249 | DN65 | DN40 |
| VPSA-110 | 90-95% | 2370×1500×3240 | 4508 | DN65 | DN40 |
| VPSA-120 | 90-95% | 2370×1500×3440 | 4708 | DN65 | DN40 |
| VPSA-130 | 90-95% | 2370×1500×3600 | 4910 | DN65 | DN50 |
| VPSA-160 | 90-95% | 2440×1850×3700 | 5810 | DN80 | DN65 |
When the adsorbent reaches saturation, the vacuum pump activates to regenerate the adsorbent through the switching valve (operating in the opposite direction to adsorption). The vacuum degree of 0.5-0.7barg removes absorbed components (water, carbon dioxide, nitrogen, and trace gases) which are then discharged to the atmosphere, allowing the adsorbent to be reused.
Due to its low energy consumption and simple operation, our VPSA oxygen production systems are widely used in:
In addition to VPSA Oxygen Generators, we also manufacture PSA Oxygen Generators, storage tanks, and heat exchangers. For inquiries about our VPSA Oxygen Systems or other products, please contact us at info@gneeheatex.com. Our team is ready to assist you with your oxygen generation needs.
